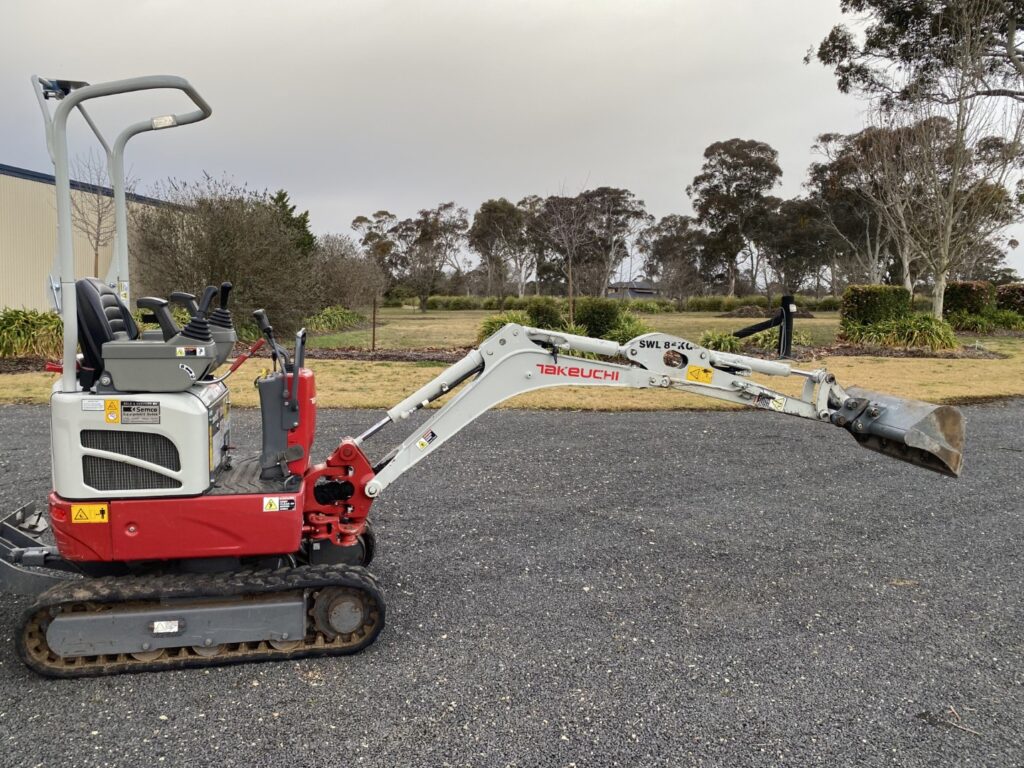

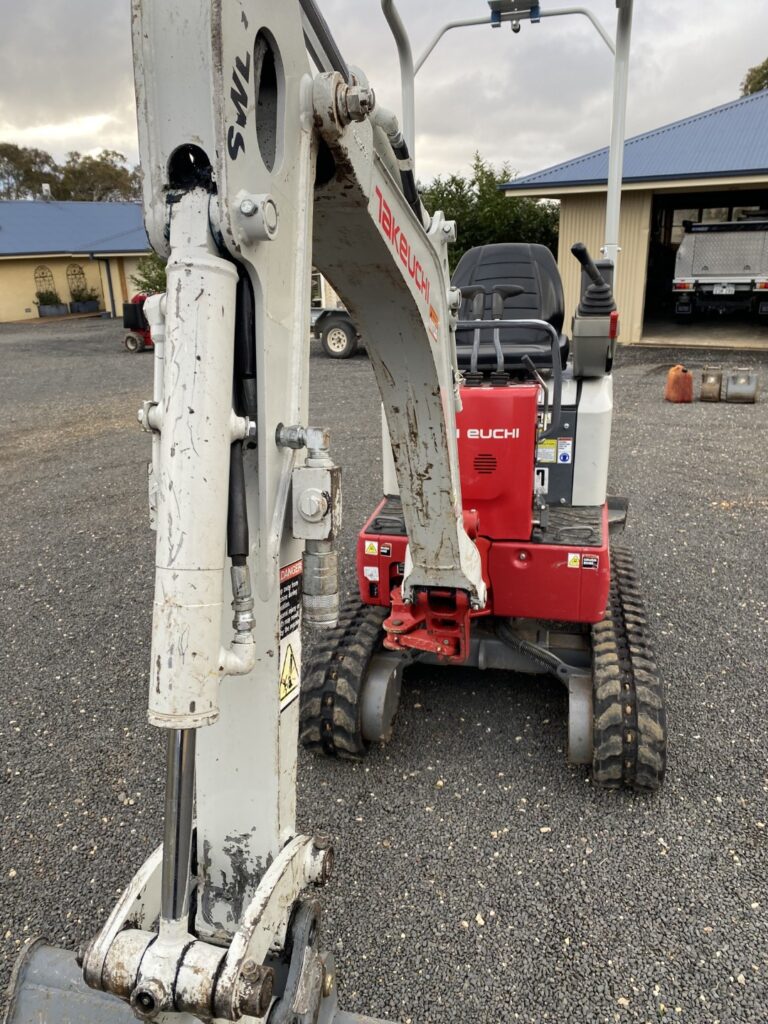

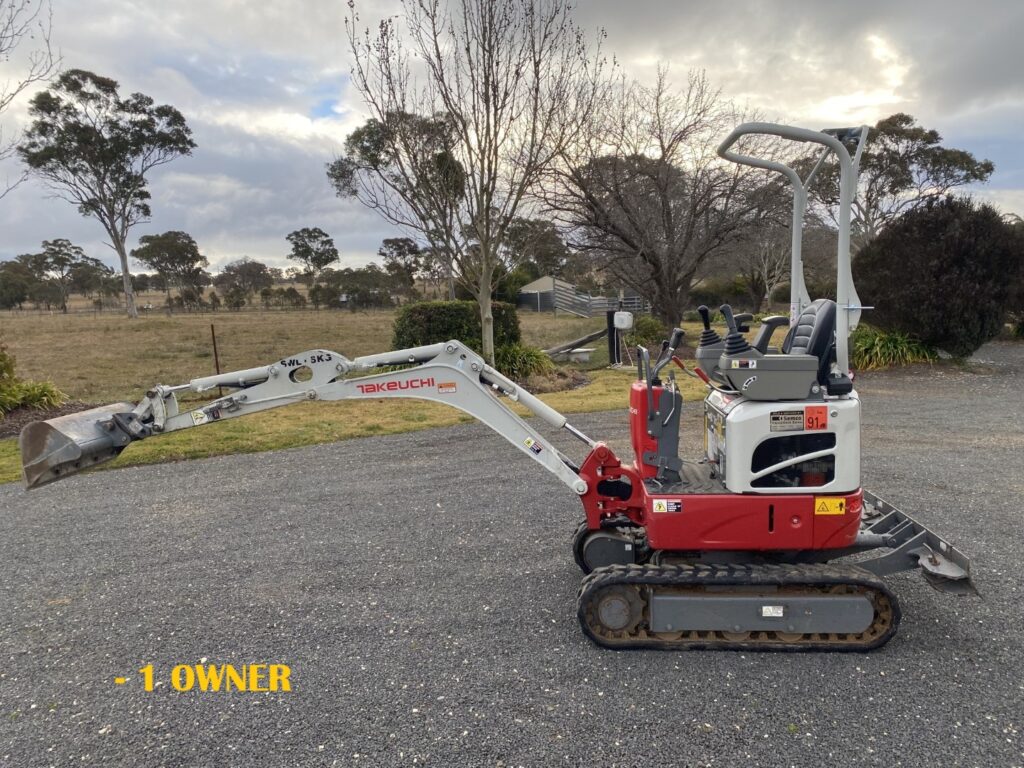

2022 Takeuchi TB210R Mini Excavator

MACHINE DETAILS:

1 x only used 2022 Takeuchi TB210R Mini Excavator

Serial Number: 211008308

Engine Number: 4NM9443

ONE OWNER MACHINE

OPERATING SPECIFICATION:

 Approximate Operating Weight; 1,150 kg

Overall Width: 750-1020mm

Height: 2,190mm (1,475mm folded canopy)

This will fit through a doorway / gateway

Transport length: 2,955mm.

Max Dump height: 2,210mm,

Max Dig depth: 1,755mm

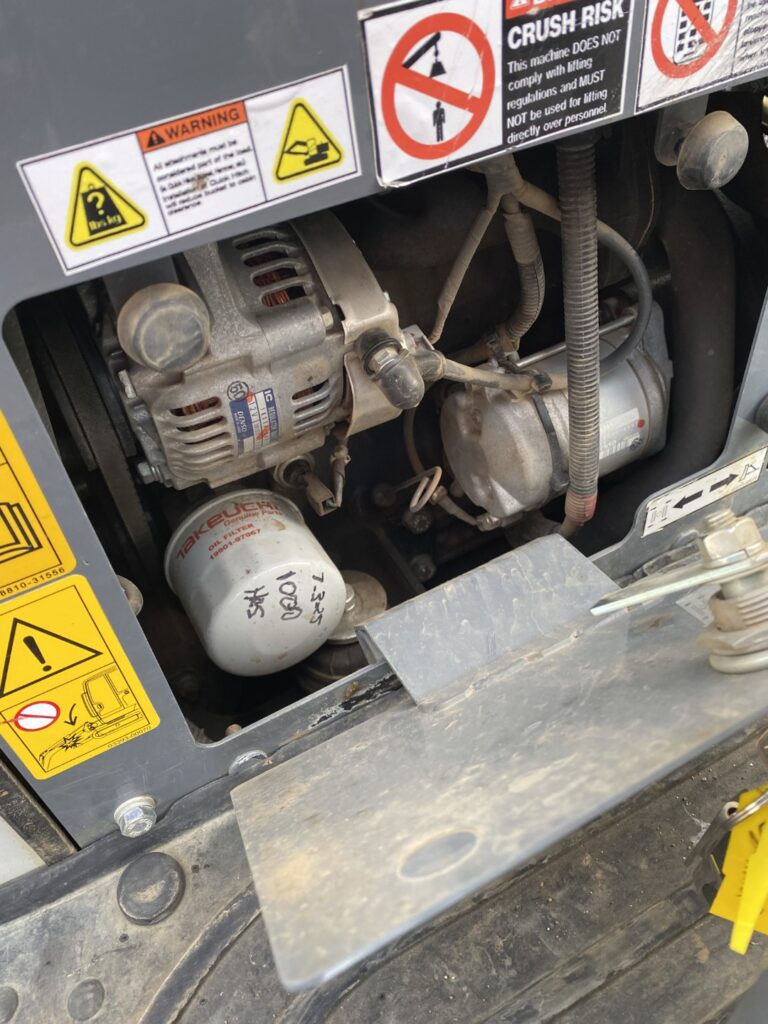

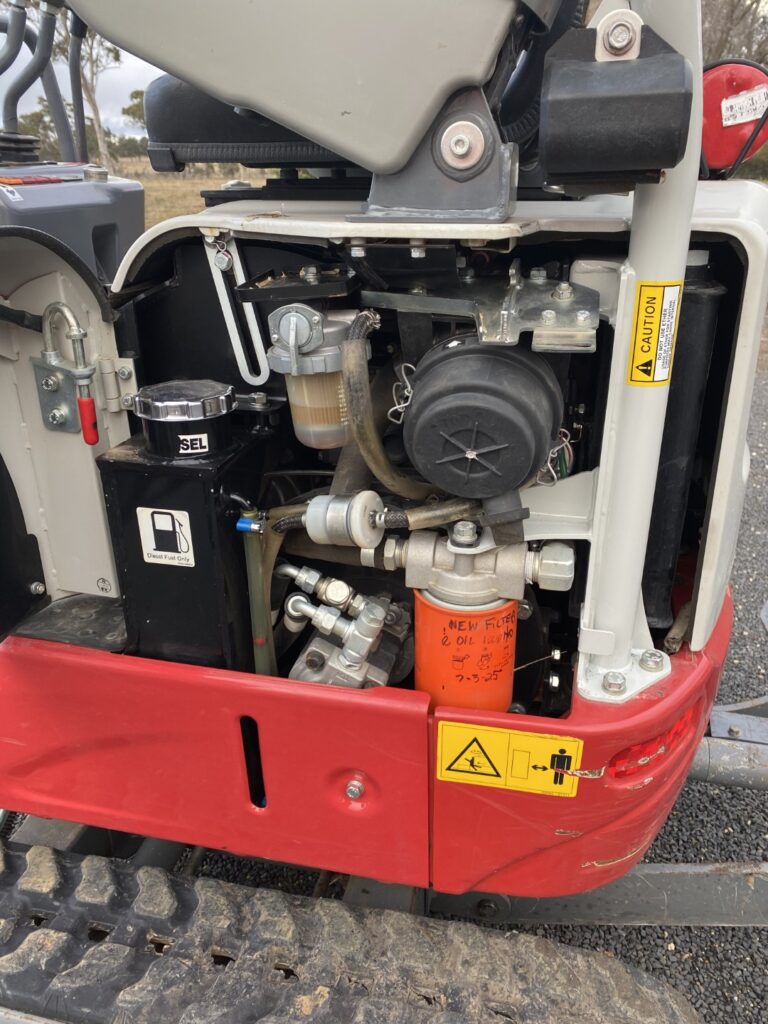

ENGINE:

Kubota D722/E4B, 0.72 Litre
3-cylinder, Diesel Engine

Gross Power; 8.0kW @ 2200 rpm.

Peak Torque; 36.0Nm @ 1900 rpm.

 HYDRAULIC SYSTEM:

System; Tandem gear pumps.

SP1 22L/min Auxiliary hydraulic flow.

2x way flow selectable.

Cylinders; Double acting piston type.

Cushioned boom cylinder

2-way pattern changeover valve.

BOOM & ARM CONFIGURATION:

Boom; Standard, Arm; 880mm

Quick hitch; As per included options.

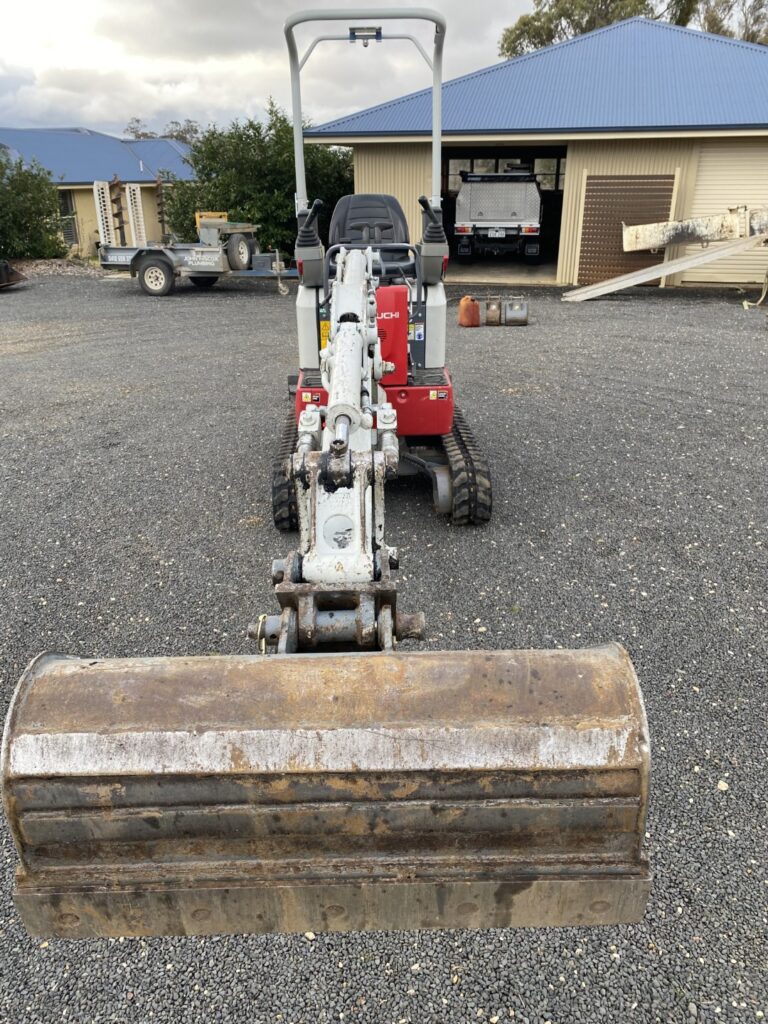

Bucket; As specified in included options.

Independent Mono Boom Swing

UNDERCARRIAGE AND GUARDS:

Travel Motors; 2 speed travel.

Track frame; Hydraulic retractable (750-1020mm)

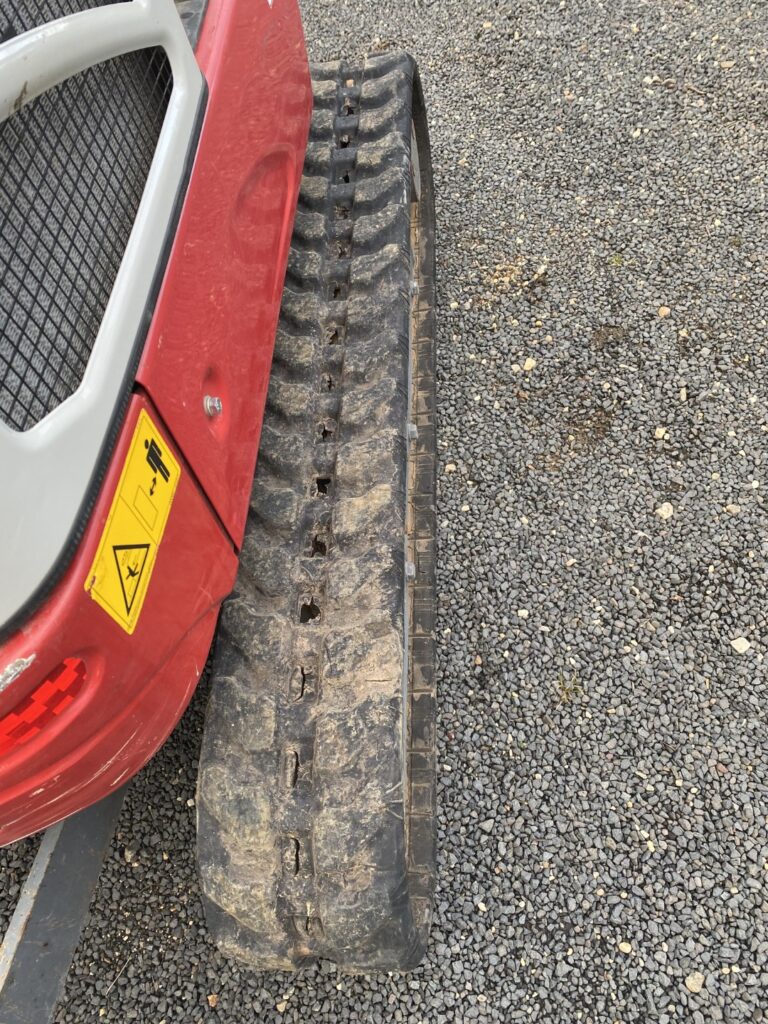

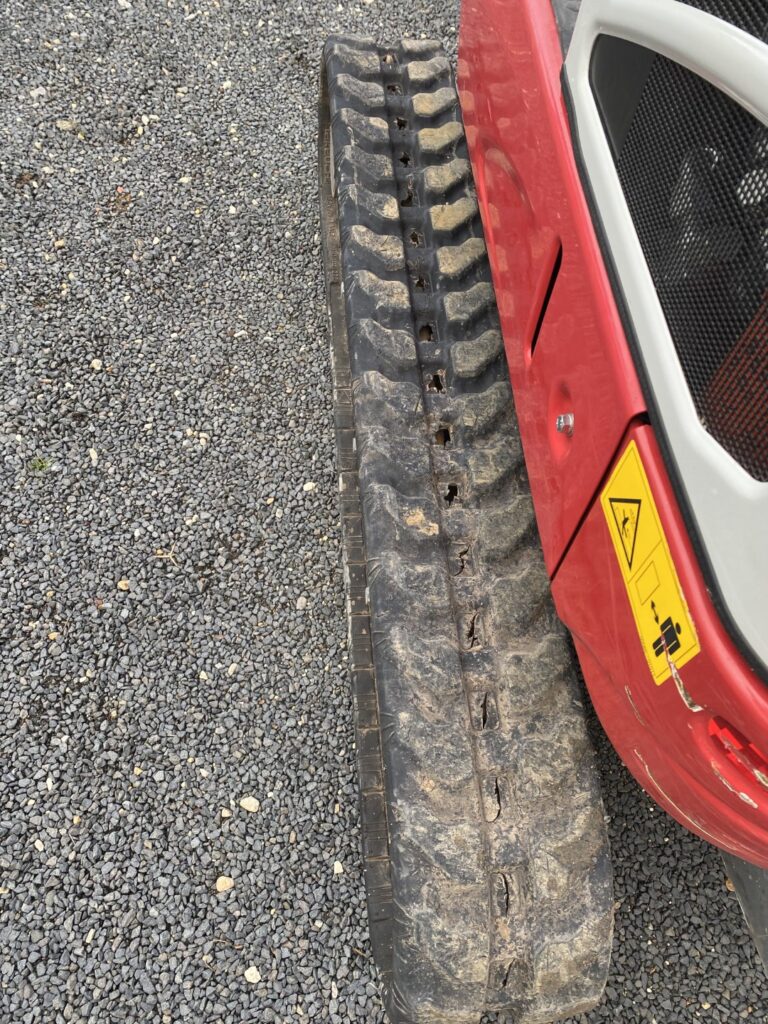

Tracks; 130mm Rubber.

Blade; Adjustable width

INCLUDING:

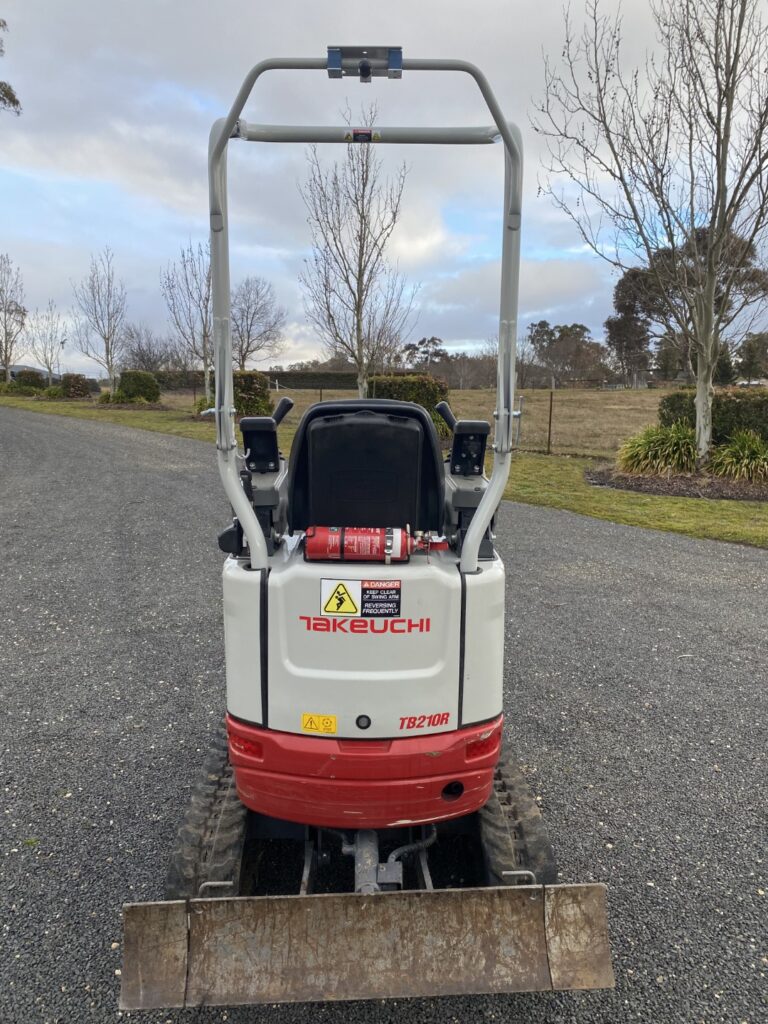

ROPS Frame; 2-post foldable. Audible & Visual warning/alarms and hour meter.

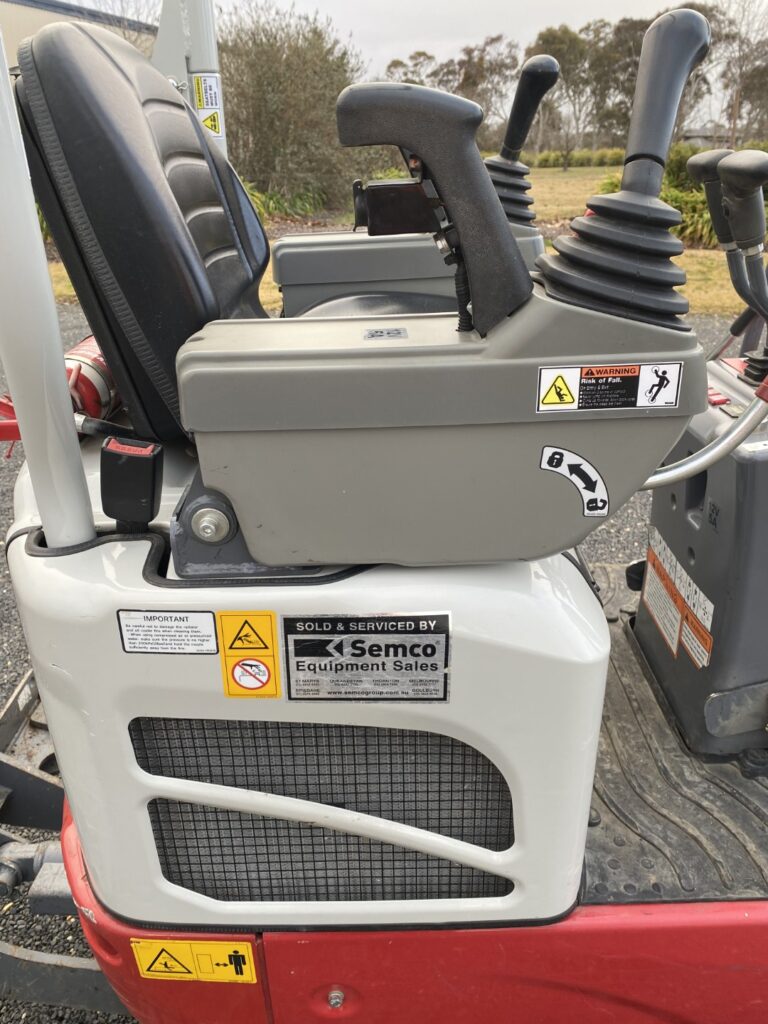

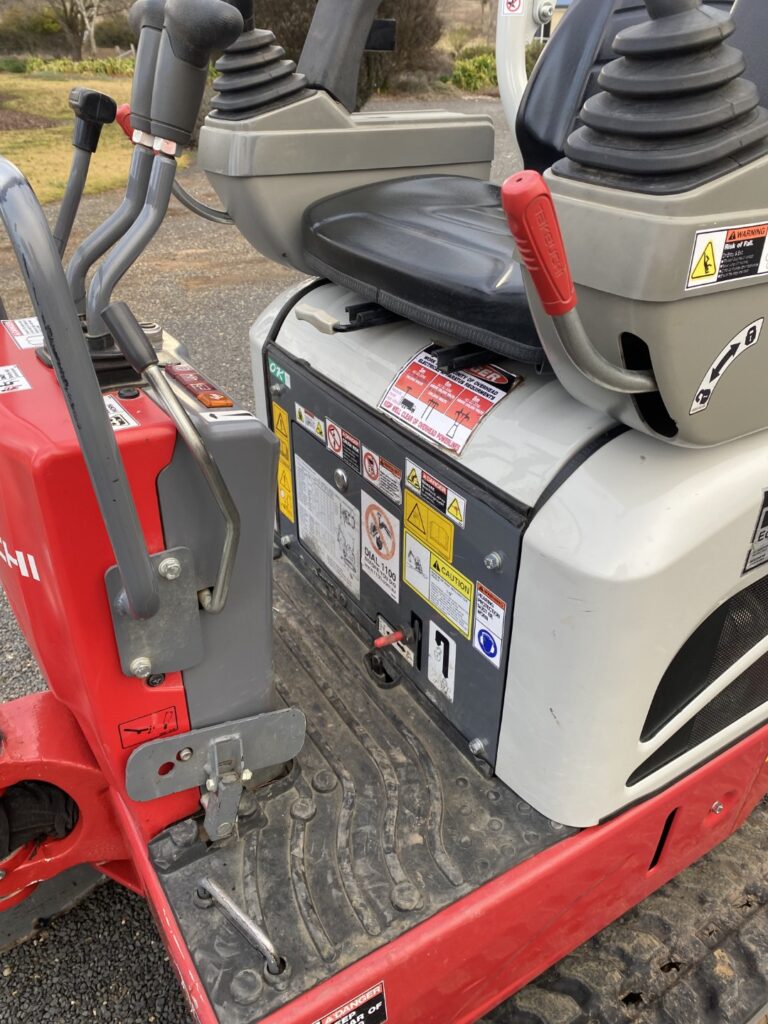

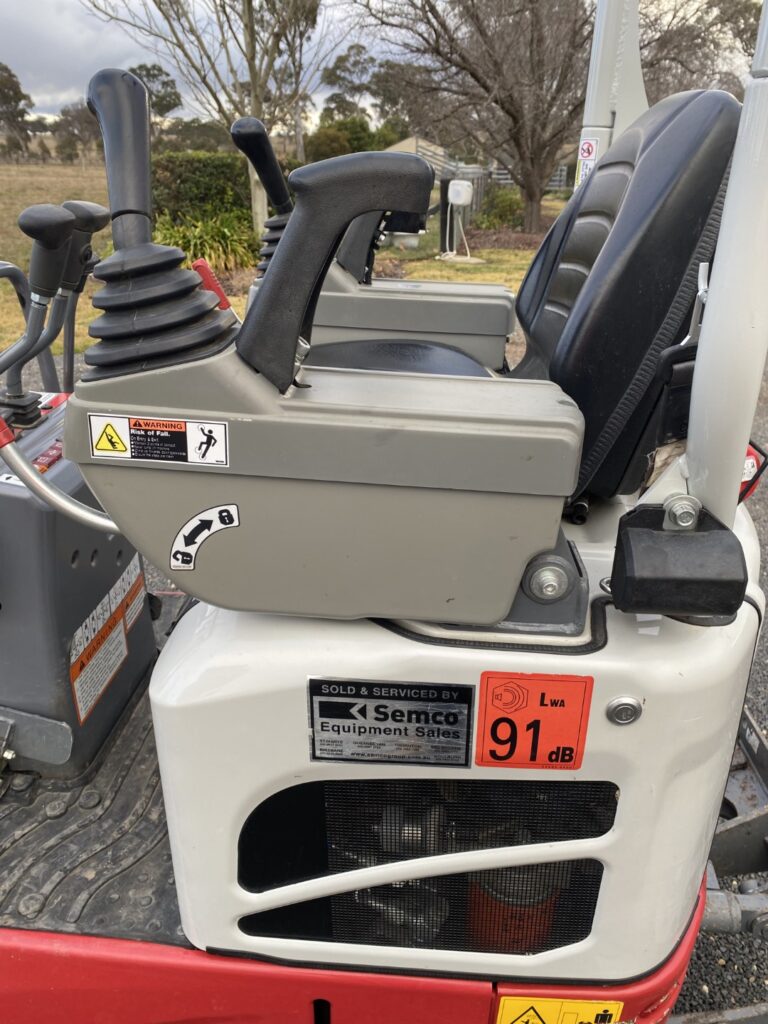

Controls; Pilot control Joysticks; Foot pedal for AUX Hydraulic control

High back suspension seat; 12V power outlet.

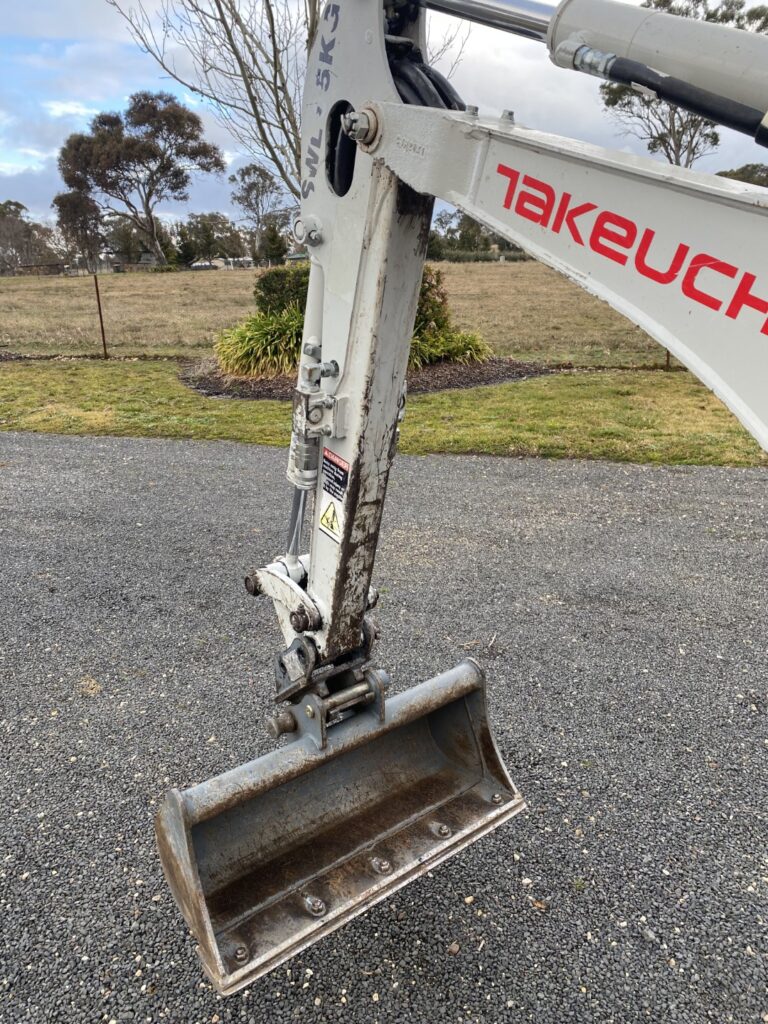

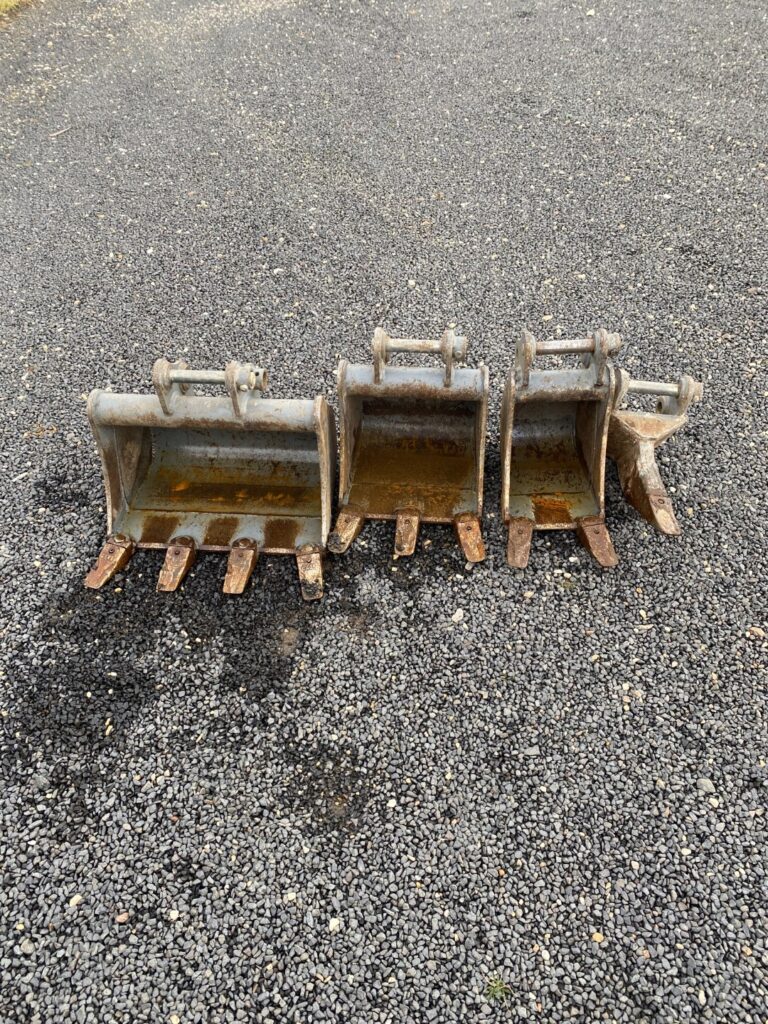

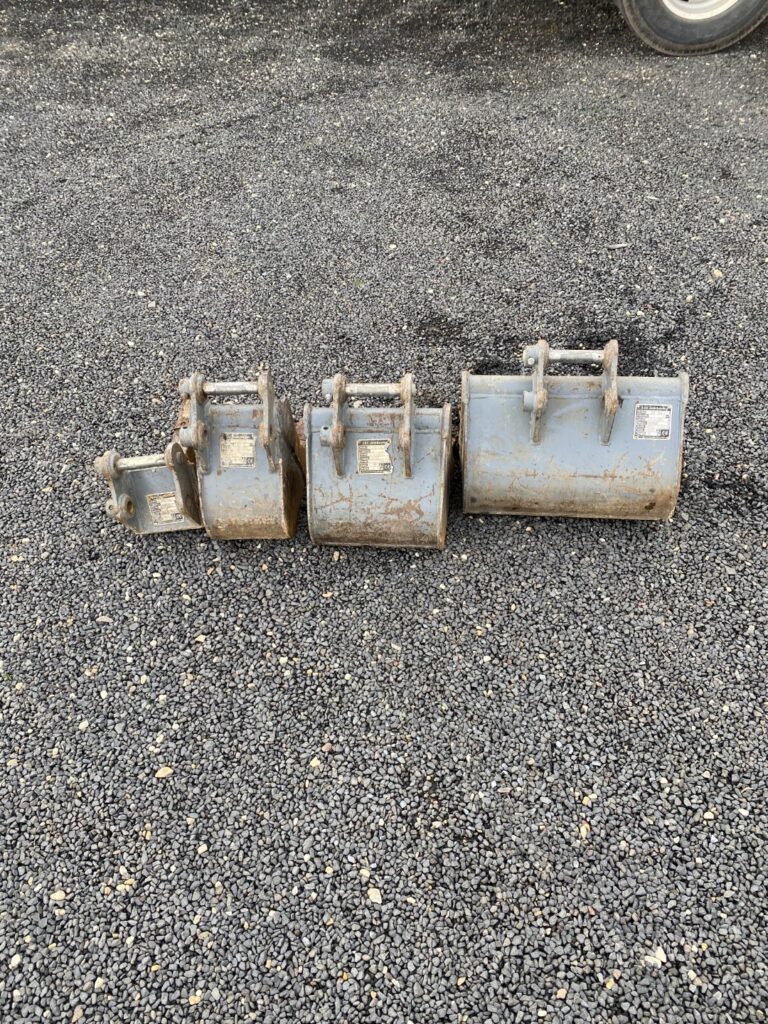

Half hitch, 200 300 450mm buckets with teeth, 700mm mud bucket & ripper

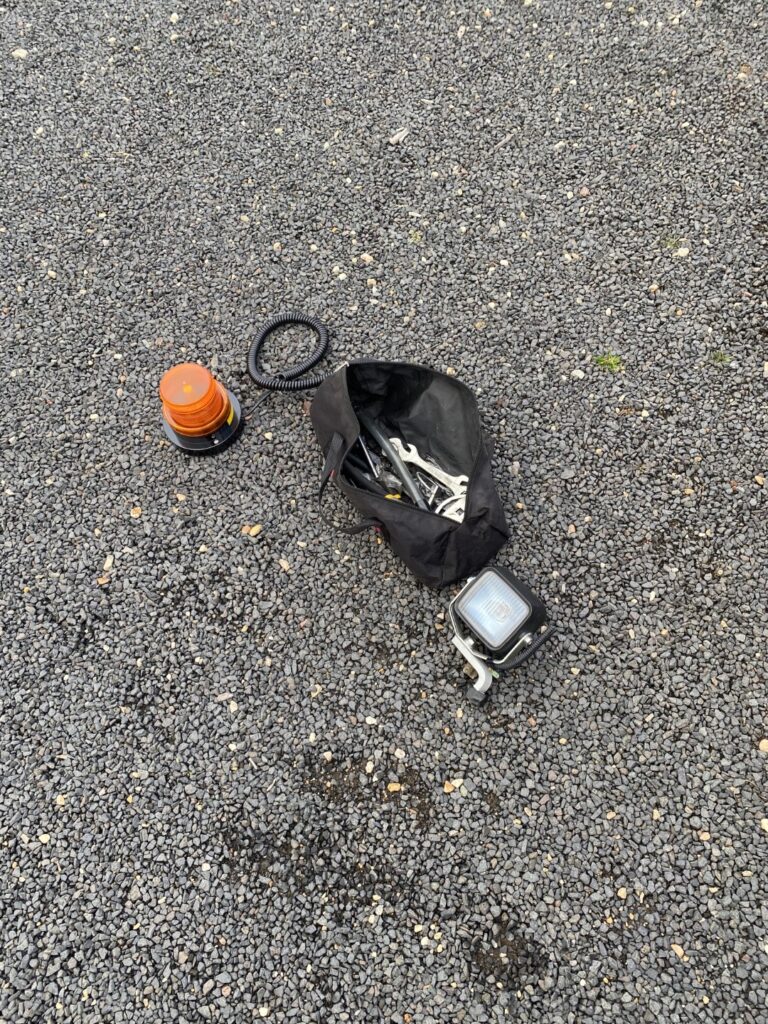

Original Operation Manual, Toolkit, & Grease gun.

Other attachments available

Stock # 600720
