2021 Isuzu FYJ 300-350 AUTO XLWB (8×4) – CRANE TRUCK

1 x only used 11 / 2021 Isuzu FYJ 300-350 AUTO XLWB (8×4) – 9.8 litre, turbo / intercooled, 350hp, 6 speed ALLISON AUTOMATIC

• SOLD / BUILT BY US FROM NEW
• 73,000 KLMS

 –GVM:  30,000kg

 –GCM:  45,000kg

 –POWER:  257kw @ 2,000rpm

 –TORQUE:  1,422nm @ 1,400rpm

  BODY;

 Fitted with a Midcoast Trucks steel tray (Internally approx 8.0m L x overall 2.5m MAX WIDTH) with a 5mm thick steel checker-plate floor.

CRANE;

Fitted with 1 x only FRONT MOUNTED – 2021 (Fitted 04 / 2022) HIAB X-HIDUO 258EP5 **REMOTE CONTROL OPERATED CRANE** – 5 x CRANE EXTENSIONS

INCLUDING

Sign Rack on Front of Headboard Approx 350mm wide

2 x Side Swinging Gates on Front Headboard approx 750mm

3 posts per side with winch straps for fall protection

Removable handrails at rear – includes access gate on LHS

Fabricate custom rear bump stop with steps for access

Tie down points in tray floor for securing

Extra 900mm long toolbox under tray

Fabricate & Install witches hat holder

3 x under-body toolboxes

STOCK # 13896

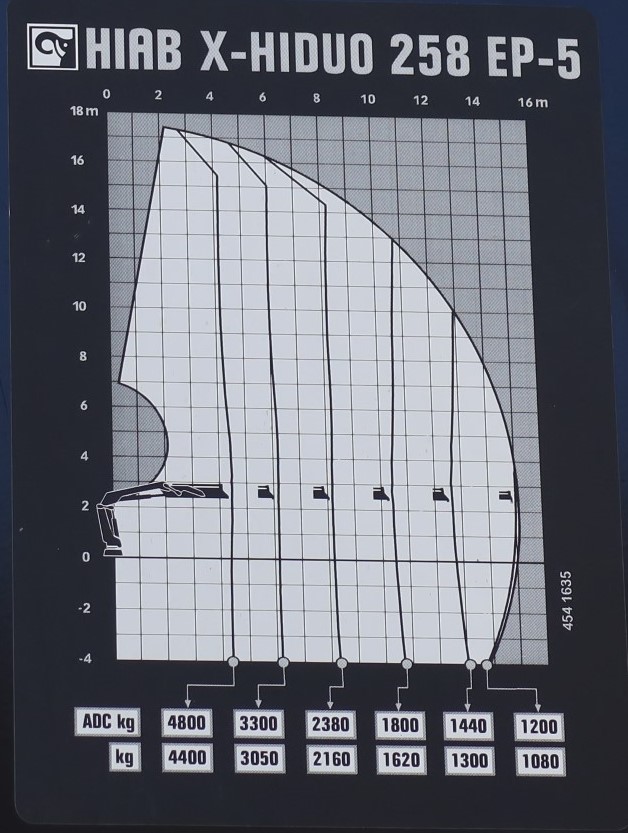

CRANE SPECS;

The HIAB 258HDEP5V40 Hi Duo crane features include:

A Lifting capability of:

4,800 Kg @ 4.50 metres

3,300 Kg @ 6.20 metres

2,380 Kg @  8.20 metres

1,440 Kg @ 12.70 metres

1,200 Kg @ 15.00 metres
