2025 Takeuchi TL8R-2 HiFLo – 74Hp Compact Track Loader AND BEAVERTAIL TRAILERS ST1 – Super Mini – Tag Trailer

**IN STOCK AND READY FOR DELIVERY**

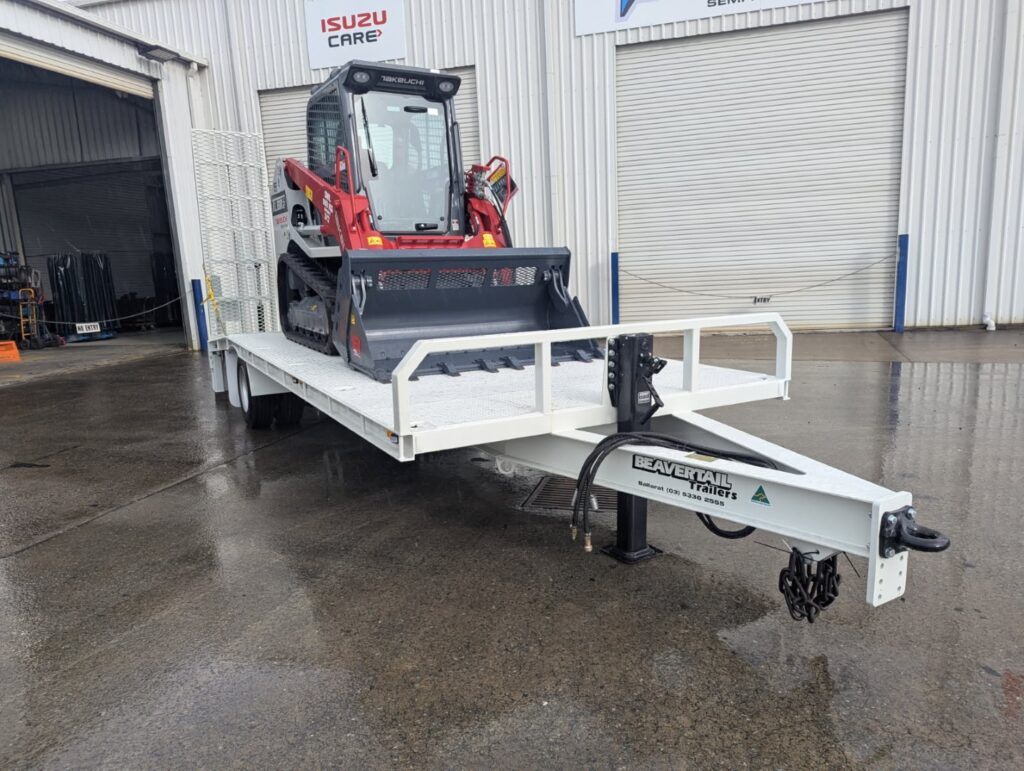

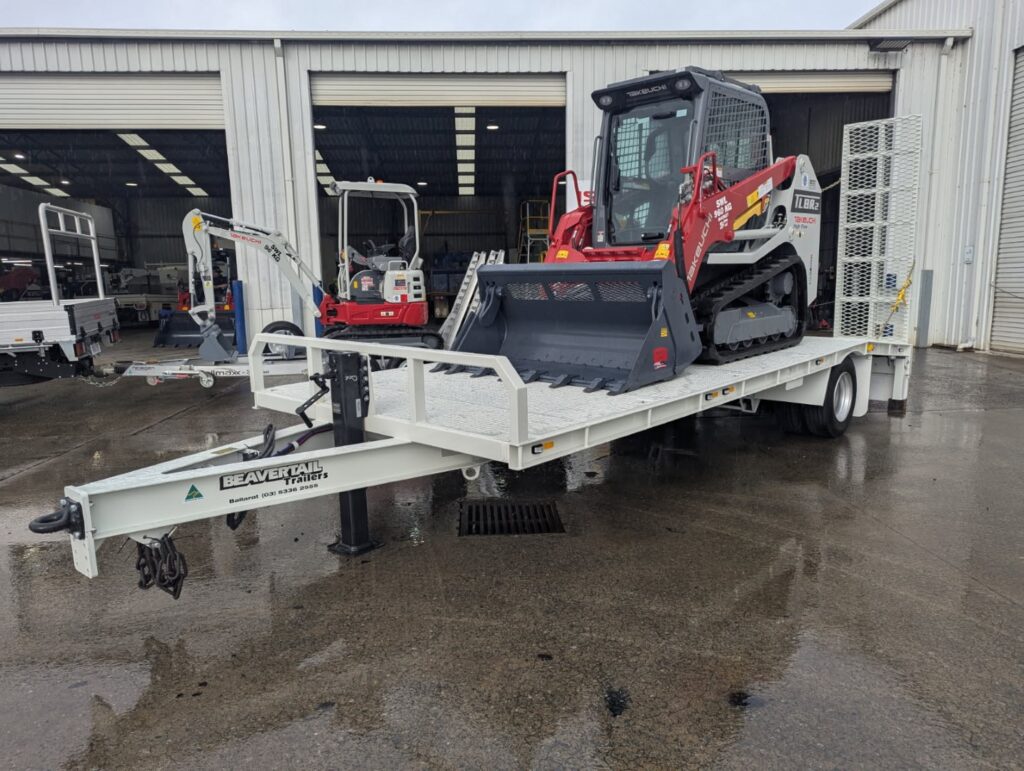

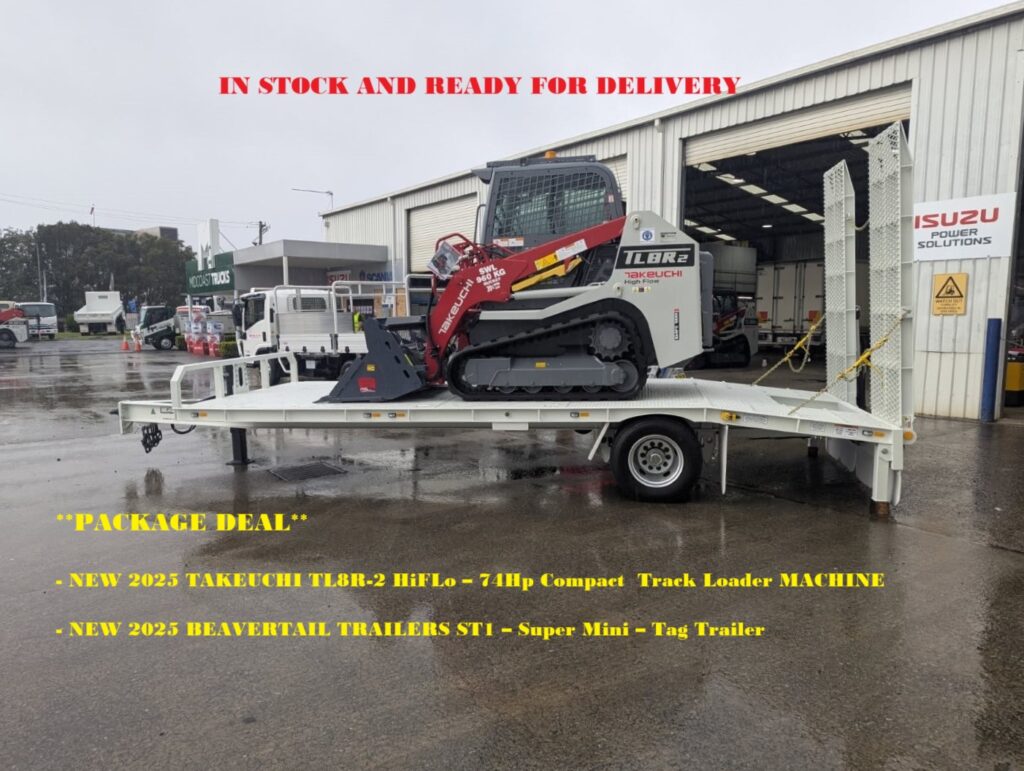

NEW 2025 TAKEUCHI TL8R-2 HiFLo – 74Hp Compact Track Loader MACHINE (Stock # 600639) AND NEW 2025 BEAVERTAIL TRAILERS ST1 – Super Mini – Tag Trailer (Stock # 700002) PACKAGE DEAL

INCLUDES;

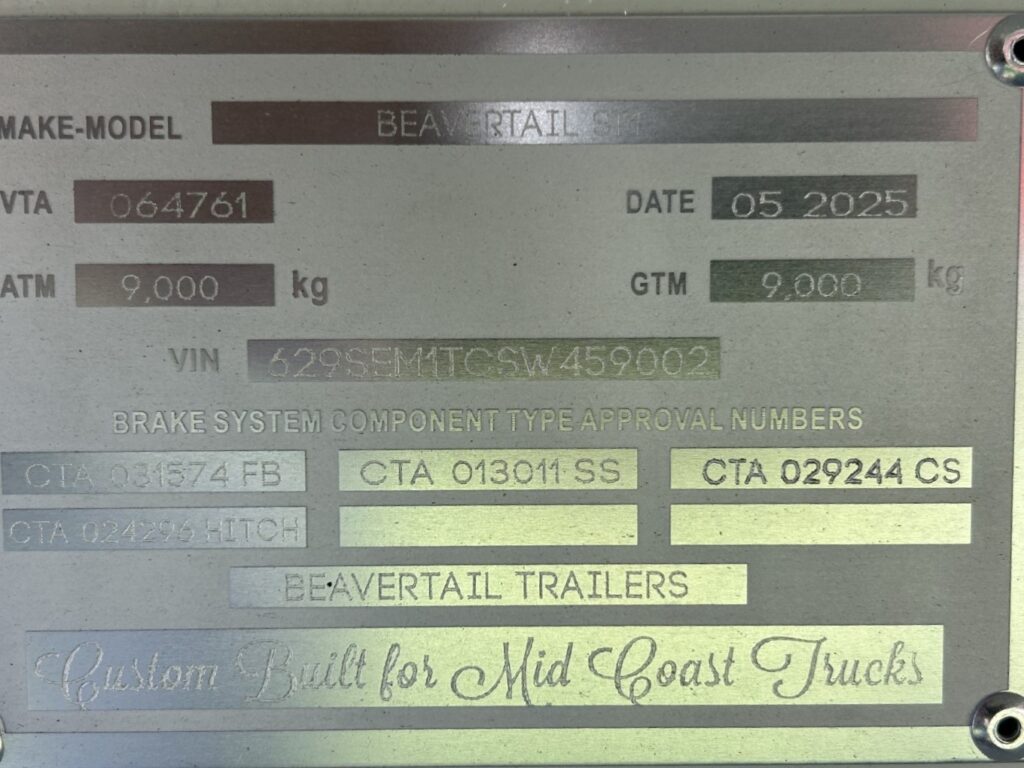

1 x only NEW 05 / 2025 BEAVERTAIL TRAILERS ST1 – Super Mini – Tag Trailer

Capacity & Tare: Gross ATM: 9T – Approx Tare: 3T

Deck Length: 5m

Beaver Length: 1.5m

Width: 2.47m*

Deck Height: 900mm*

Front Hurdle: 375mm High Round Hurdle

Drawbar: 1.5m

Floor: 5mm Checker Plate

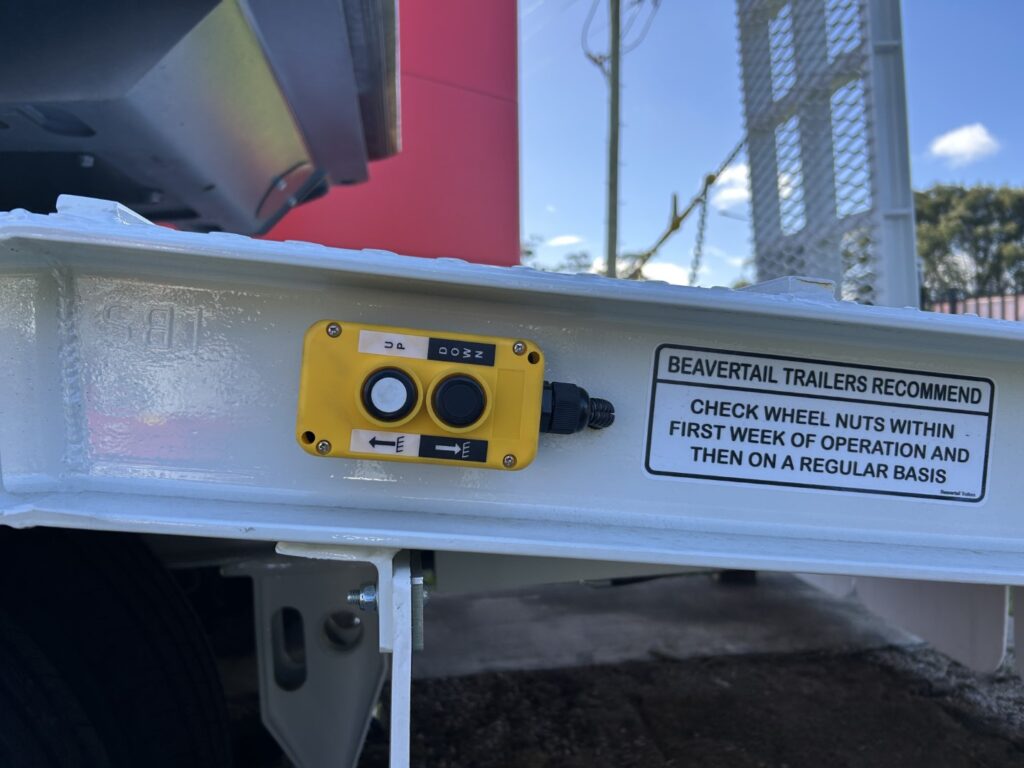

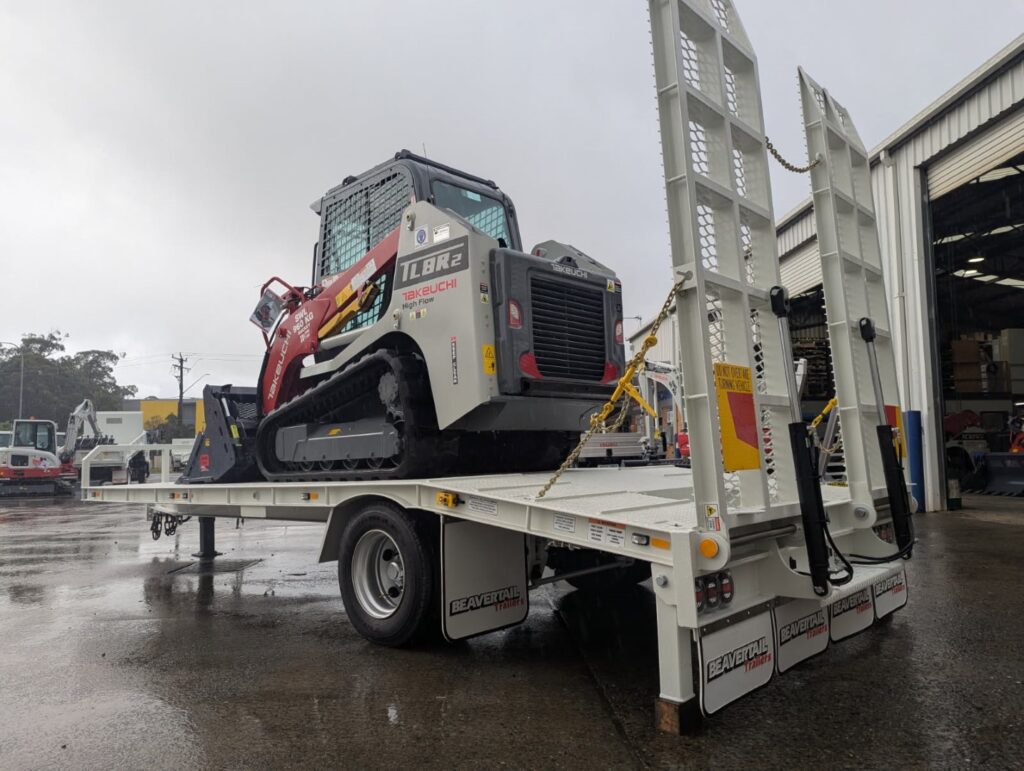

Ramps: Hydraulic double acting ramps operated by battery power pack, 2400mm long x 780mm wide, lined with mesh, painted with stainless steel ramp hinge bar, dogs and chains

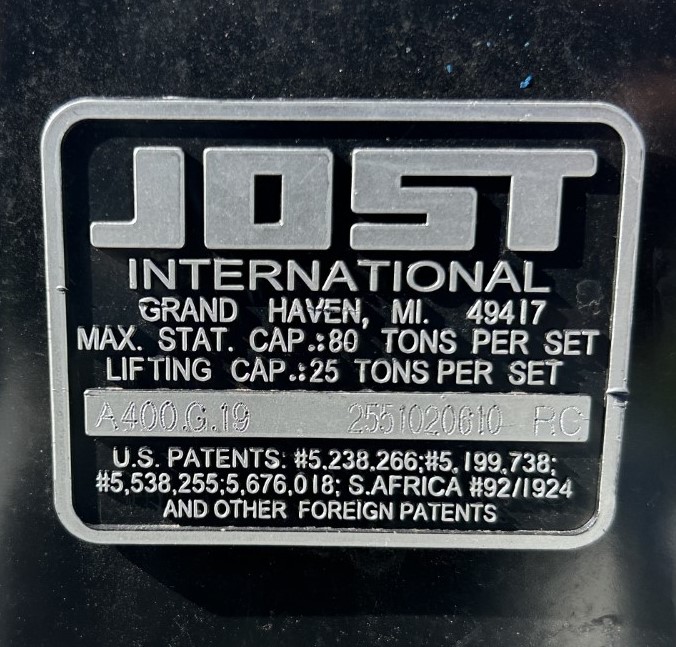

Leg: 2 Speed Landing Leg

Main Chassis Rail: 200UB Heavy Gauge

Cross Members: 100 x 50 3mm

Coaming Rail: 125mm PFC

In Deck Tie Points: 6 x Chain Down Points Per Side

Suspension: 8 Leaf underslung Spring Suspension

Axles: 15” 10 stud EBS compliant

Rear Stabiliser Legs: Trailers with beavertail only

Tyres: 235/75 R17.5 (Other sizes available upon request)

Rims: Steel

Lights: LED

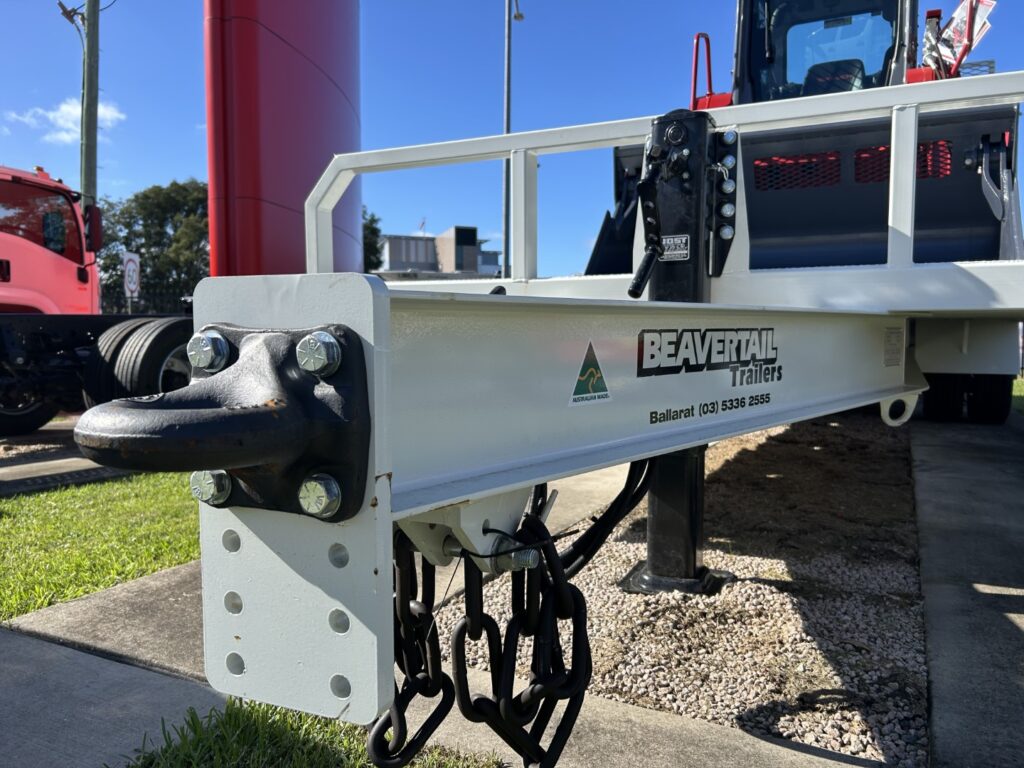

Hitch: Pintle

Safety Chains: 19mm Bartlett Safety Chain Attachments to meet ADR62 specifications

Sandblasted & Paint: 2k prime & 2k polyurethane paint PPG industrial.

Stock #:  700002

PLUS

MACHINE DETAILS:

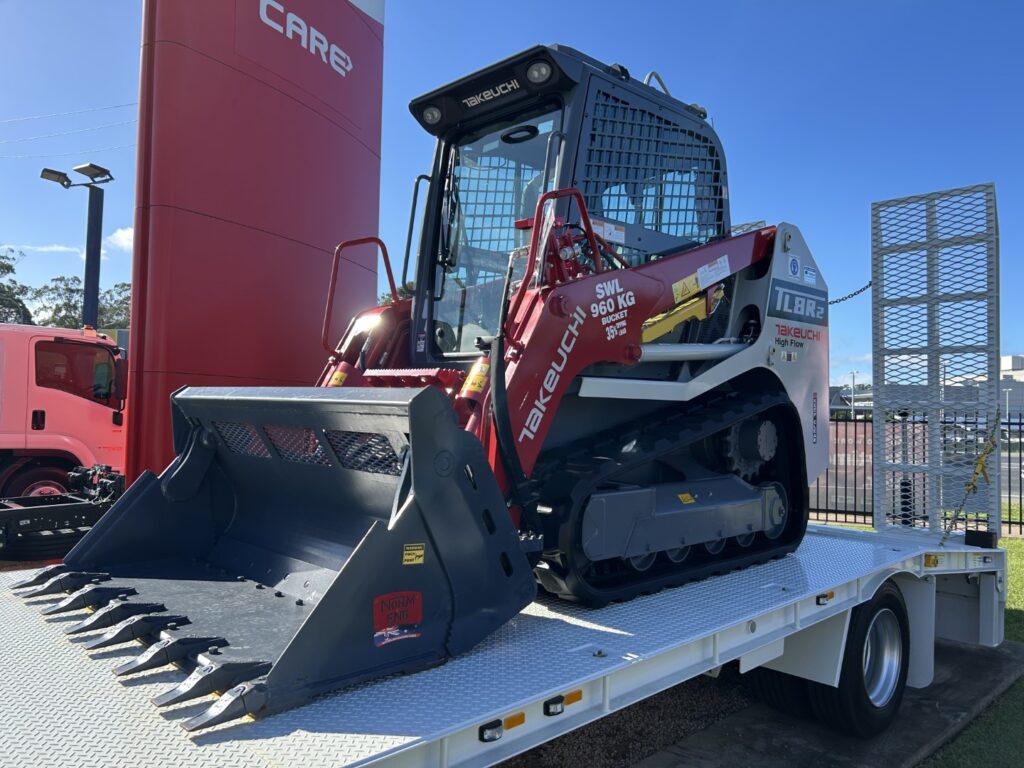

1 x only NEW 2025 TAKEUCHI TL8R-2 HiFLo – 74Hp Compact Track Loader

OPERATING SPECIFICATION:

Approximate Operating Weight: 3960Kg

Height: 2230mm

Transport length: 3485mm

Tipping Load: 2740kg

Rated operating capacity @35%: 960Kg

Travel Speed: 11.2Km/h

Bucket Breakout force: 27.6kN

Lift Arm Breakout Force: 26.5kN

ENGINE:

Kubota V3307-CR_TE5B

4-cylinder, Turbo Diesel Engine

Gross Power: 54.6kW / 2,600 rpm

Max Torque: 261.1Nm / 1500 rpm

 HYDRAULIC SYSTEM:

AUX Flow – Primary Circuit: 72.3 L/min

AUX Flow – HiFLow: 128L/min

 INCLUDING:

AC CAB with guard (FOPS Level 2), Rubber Tracks, Hi-Flow, Creep Mode / Auto Travel Shift,

Multigrip lever, 14 pin connector, Pressure Release Line with quick coupler (1/2), Foot Throttle,

Hydraulic quick hitch, Back Camera, Manual Park Break, Hydraulic lock

ADDITIONAL ATTACHMENTS INCLUDED:

Norm Loader style 4 in 1bucket with bolt on edges & teeth

Other attachments available on request

Mulchers, Mowers, Trenchers, Augers, Rippers, Graders, plus more.

STOCK # 600639

**WE CAN PACKAGE A TRUCK TO SUIT – PLEASE ENQUIRE**
